POLE SERVICE DOORS SERIES
PPA

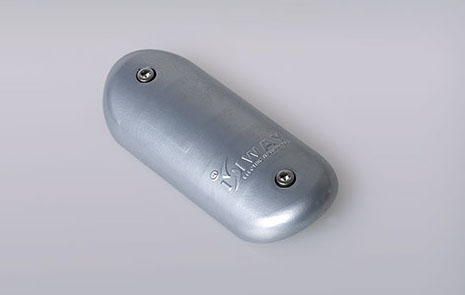

ALUMINIUM POLE SERVICE DOOR
• Die cast aluminium body
• Chemical treatment (phosphochrome) plus thermo powder paint zinc colour.
Extra RAL colour on request.
• Removable gasket made of antiage EPDM rubber.
• Stainless steel screws AISI 304; pentagonal screws head including the relevant
operating key.
• Aluminium antiloosing locking devices
• Protection rate IP55 according to standards CEI EN 60529 - IK10 CEI EN 50102
Pole Ø mm
from 76 to 102
Part N°
PPA/76-102
External dimensions
65 x 158 x 11
Code N°
PPA
PPP

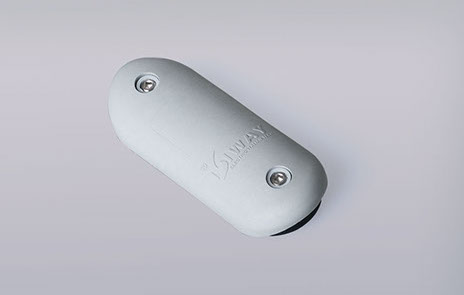

POLYAMIDE POLE SERVICE DOOR
• Polyamidic resin, fibreglass reinforced Pa6-6 grey colour RAL 7035, black or other
colour on request.
• Removable gasket made of antiage EPDM rubber.
• Stainless steel screws AISI 304; pentagonal screws head including the relevant
operating key.
• Aluminium antiloosing locking devices
• Protection rate IP55 according to standards CEI EN 60529 - IK10 CEI EN 50102
Pole Ø mm
from 76 to 102
Part N°
PPP/76-102
External dimensions
65 x 158 x 11
Code N°
PPP
Colour
grey

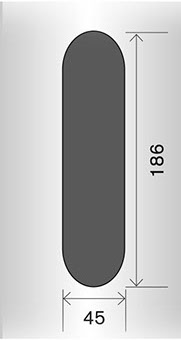

FP45X186

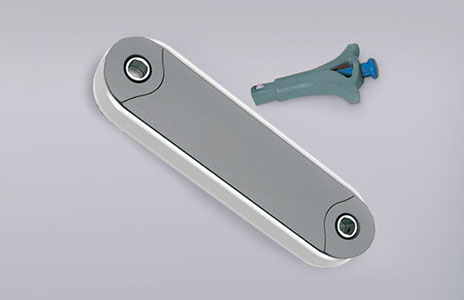

ALUMINIUM POLE SERVICE DOORS "NO STEP"
• Die cast aluminium body
• Chemical treatment (phosphochrome) plus thermo powder paint zinc colour.
Extra RAL colour on request.
• Removable gasket made of antiage EPDM rubber.
• Stainless steel screws AISI 304; pentagonal screws head including the relevant
operating key.
• Special antiloosing locking devices
• Protection rate IP55 according to standards CEI EN 60529 - IK10 CEI EN 50102

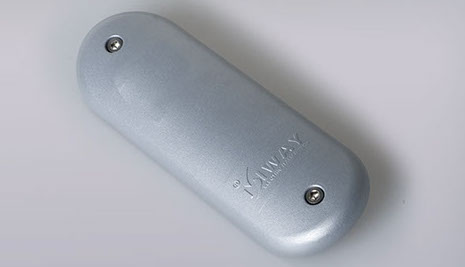

PGA - PQA - POA
ALUMINIUM POLE SERVICE DOOR
• Die cast aluminium body
• Chemical treatment (phosphochrome) plus thermo powder paint zinc colour.
Extra RAL colour on request.
• Removable gasket made of antiage EPDM rubber.
• Stainless steel screws AISI 304; pentagonal screws head including the relevant
operating key.
• Aluminium antiloosing locking devices
• Protection rate IP55 according to standards CEI EN 60529 - IK10 CEI EN 50102

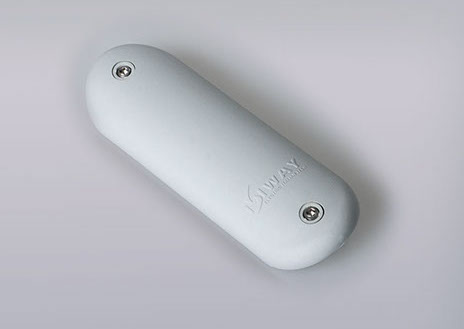

PGP
POLYAMIDE POLE SERVICE DOOR
• Polyamidic resin, fibreglass reinforced Pa6-6 grey colour RAL 7035, black or other
colour on request.
• Removable gasket made of antiage EPDM rubber.
• Stainless steel screws AISI 304; pentagonal screws head including the relevant
operating key.
• Aluminium antiloosing locking devices
• Protection rate IP55 according to standards CEI EN 60529 - IK10 CEI EN 50102
Pole Ø mm
from 102 to 114
from 127 to 168
from 178 to 300
Flat surfaces
Octagonal
Pole Ø mm
from 102 to 114
from 127 to 168
from 178 to 300
Part N°
PGA/102-114
PGA/127-168
PGA/178-300
PQA
POA
Part N°
PGP/102-114
PGP/127-168
PGP/178-300
External dimensions mm
72 x 212 x 11
72 x 212 x 11
72 x 212 x 11
72 x 212 x 10
62 x 212 x 9
External dimensions mm
72 x 212 x 11
72 x 212 x 11
72 x 212 x 11
Code N°
PGA
PGA
PGA
PQA
POA
Code N°
PGP
PGP
PGP
Colour
grey
grey
grey
It is a matter of assembled cover/JB which avoid any steps on the pole. Furthermore it will meet the outline of the slot giving the original shape to the poles. The cover will be tight till the pole surface level by a very special mounting tool supplied with the “NO STEP” kit.
POLE SERVICE DOORS • "NO STEP"
POLE SERVICE DOORS • "NO STEP"
It is a matter of assembled cover/JB which avoid any steps on the pole. Furthermore it will meet the outline of the slot giving the original shape to the poles. The cover will be tight till the pole surface level by a very special mounting tool supplied with the “NO STEP” kit.

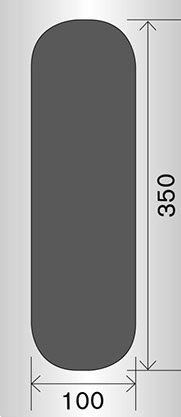

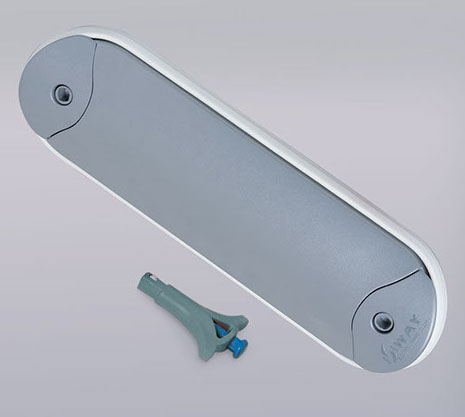

P/100-350A
ALUMINIUM POLE SERVICE DOORS "NO STEP"
• Die cast aluminium body
• Chemical treatment (phosphochrome) plus thermo powder paint zinc colour.
Extra RAL colour on request.
• Removable gasket made of antiage silicone.
• Stainless steel screws AISI 304; pentagonal screws head including the relevant
operating key.
• Special antiloosing locking devices.
• Available junction boxes type M4, M5, M9, BASE/DIN.
• To be assembled on poles diam. 153 - 220 mm.
• Protection rate IP55 according to standards CEI EN 60529 - IK10 CEI EN 50102
