POLE JUNCTION BOXES

M1 - M3

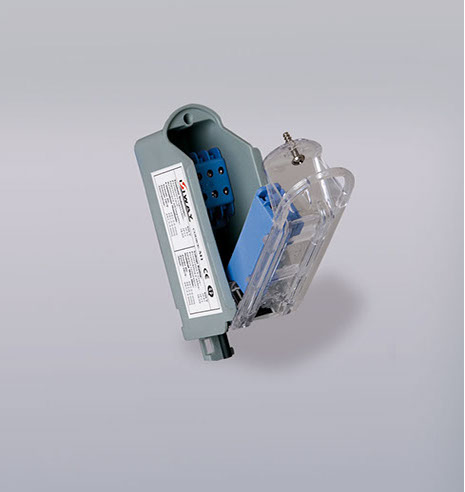

POLE JUNCTION BOX



• Body made of polyamidic resin 6 self-extinguishing and infrangible



• Moulded connector made of polyamidic resin 6 self-extinguishing



• Pressed terminals made of three ways zinc electro-alloy.

   Chemical antioxidizer treatement.

   Single connection of the wires by inox screws AISI 304



• Nominal gauge of the wires 6 sqmm, shunt up to 4 sqmm.



• Voltage 450 V max. current 30 A



• Fuse carriers 8,5x31,5 holding fuses 6 - 10 A



• Pole recessed mounting diam. min. 76 mm.



• Body and terminals class 2 according to CEI 64-8/4 standards



• Protection rate IP 43 along the frame and IP 23B on entry cables CEI EN 60529;

   IK 8 according to CEI EN 50102 standards.

N° of Poles





4

2

Part N°





MOR/M1

MOR/M3

Wires

sqmm max.



6

10

Portafusibile

N. - Imax



1 - 10 A

1 - 10 A

Code N°





M1

M3

N° of Poles





4

Poles

N.



4

4

4

Poles

N.



4

4

4

Pole

diameter



from 89 to 114

from 102 to 192

fr. 219 to 300*

Pole

diameter



from 89 to 114

from 102 to 192

fr. 219 to 300*

Part N°





MOR/M2

Part n°





MCR1A/89-114

MCR2A/102-192

MCR2A/102-300*

Part N°





MCR1A/89-114

MCR2A/102-192

MCR2A/102-300*

Wires

sqmm max.



16

Wires

sqmm max.



6

16

16

Wires

sqmm max.



6

16

16

Portafusibile

N. - Imax



1 - 10 A

Portafusibile

N. - Imax



1 - 10 A

1 - 10 A

1 - 10 A

Portafusibile

N. - Imax



1 - 10 A

1 - 10 A

1 - 10 A

Code N°





M2

Code n°





MCR1A

MCR2A

MCR2A*

Code N°





MCR1P

MCR2P

MCR2P*

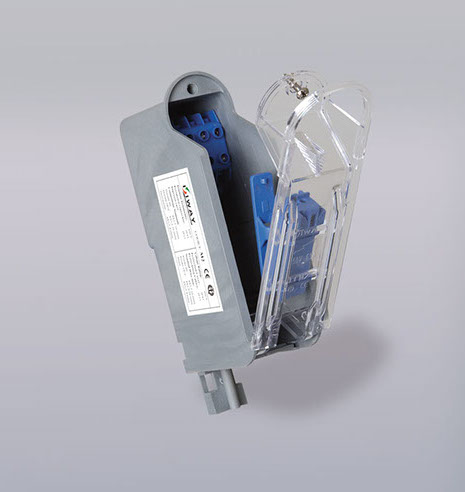

M2

POLE JUNCTION BOX



• Body made of polyamidic resin 6 self-extinguishing and infrangible



• Moulded connector made of polyamidic resin 6 self-extinguishing



• Pressed terminals made of three ways zinc electro-alloy.

   Chemical antioxidizer treatement.

   Single connection of the wires by inox screws AISI 304



• Nominal gauge of the wires 16 sqmm, shunt up to 4 sqmm.



• Voltage 450 V max. current 63 A



• Fuse carriers 8,5x31,5 holding fuses 6 - 10 A



• Pole recessed mounting diam. min. 102 mm.



• Body and terminals class 2 according to CEI 64-8/4 standards



• Protection rate IP 43 along the frame and IP 23B on entry cables CEI EN 60529;

   IK 8 according to CEI EN 50102 standards.

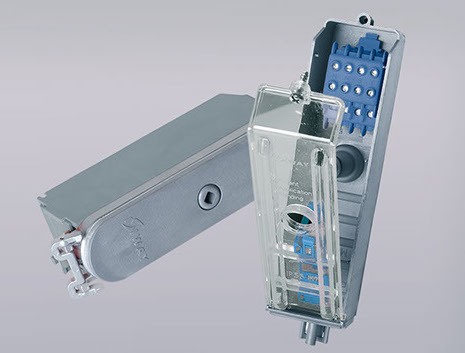

SERIE MCR - COVERS/JUNCTION BOX “NO STEP”



ALUMINIUM “NO STEP” SERIES (MCR1A - MCR2A)

• Die cast aluminium body

• Chemical treatment (phosphochrome) plus thermo powder paint zinc colour.

   Extra RAL colour on request.

• Removable gasket made of antiage EPDM rubber.

• Stainless steel screws AISI 304; pentagonal screws head including the relevant

   operating key.

• Special antiloosing locking devices

• Protection rate IP55 according to standards CEI EN 60529 - IK10 CEI EN 50102

JUNCTION BOX

• Body made of polyamidic resin 6.6 self-extinguishing and infrangible



• Moulded connector made of polyamidic resin 6.6 self-extinguishing



• Pressed terminals made of three ways zinc electro-alloy.

   Chemical antioxidizer treatement.

   Single connection of the wires by inox screws AISI 304



• Nominal gauge of the wires 16 sqmm, shunt up to 4 sqmm.



• Voltage 450 V max. current 63 A



• Fuse carriers 8,5x31,5 holding fuses 6 - 10 A (see accessories pag. 8)



• Pole recessed mounting diam. min. 89 mm. for MCR1 and 102 mm. for MCR2.

   Diameters at the slot height.



• Body and terminals class 2 according to CEI 64-8/4 standards



• Protection rate IP 43 along the frame and IP 23B on entry cables CEI EN 60529;

   IK 8 according to CEI EN 50102 standards.

WITH POLYAMIDE COVER (MCR1P - MCR2P)

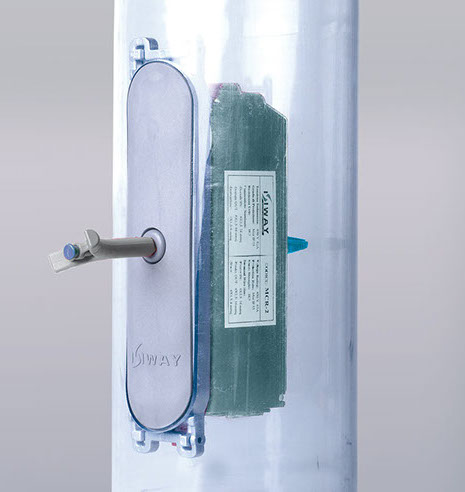

Features: it is a matter of assembled cover/JB which avoid any steps on the pole. Furthermore it will meet the outline of the slot giving the original shape to the poles. The cover will be tight till the pole surface level by a very special mounting tool supplied with the “NO STEP” kit.

Code number including the aluminium cover MCR1A and MCR 2A. Code number including the polyamide cover MCR1P and MCR 2P.

COVERS/JUNCTION BOX “NO STEP” SYSTEM

* with kit 219300 (adapter for cover MCR2)

* with kit 219300 (adapter for cover MCR2)

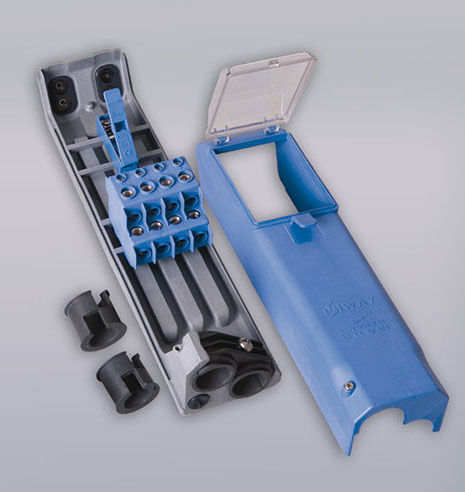

M4-1

DOUBLE ISOLATION MASTER JUNCTION BOXES



Series of JB with inspectional cover.



Type M4, double DIN (46277/3) rail to allow the four poles three ways terminal strip to be selected between 6, 16, 35, 50 sqmm., fuse carriers and any sort of extra accessories like MCB’s, surge arrestor etc.



The M4 comes completed of two series of rubber grommets to permit a perfect tightness of the in/out feeder cables.

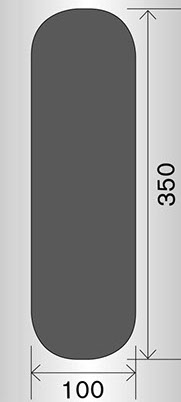

After the installation of M4 inside the pole, the slot can be closed by the NO STEP cover 100x350 p/n P/100-350A



Dimensions (base x height x deep) 80x345x90 mm.



Minimum pole diam. 127 mm.



M4 series  are made of polyamidic resin 6.6 self-extinguishing, infrangible.



Double isolation (class 2) according to CEI 64-8/4 standard.



Nominal voltage 450V, max current 63A.



Protection grade IP54 CEI EN 60529, IK8 according to CEI EN 50102 standard.

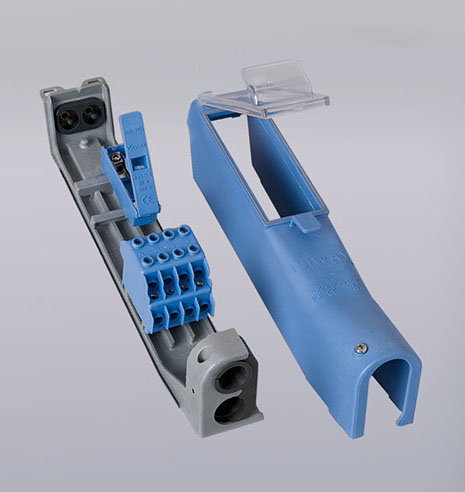

M5-1

DOUBLE ISOLATION MASTER JUNCTION BOXES



Type M5, double DIN (46277/3) rail to allow the four poles three ways terminal strip 4x16 plus one or two fuse carriers.



The M5 is supplied with an extra dome polycarbonate service door in order to

permit to assemble one or two MCB’s instead of fuse carriers.



The M5 comes completed of two rubber grommets to permit a perfect tightness of the in/out feeder cables.

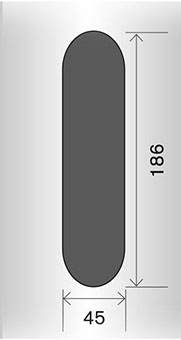

After the installation of M5 inside the pole, the slot can be closed by the NO STEP cover 45x186 p/n FP/45-186A.



Dimensions (base x height x deep) 44x269x68 mm.



Minimum pole diam. 89 mm.



M5 series are made of polyamidic resin 6.6 self-extinguishing, infrangible.



Double isolation (class 2) according to CEI 64-8/4 standard.



Nominal voltage 450V, max current 63A.



Protection grade IP54 CEI EN 60529, IK8 according to CEI EN 50102 standard.

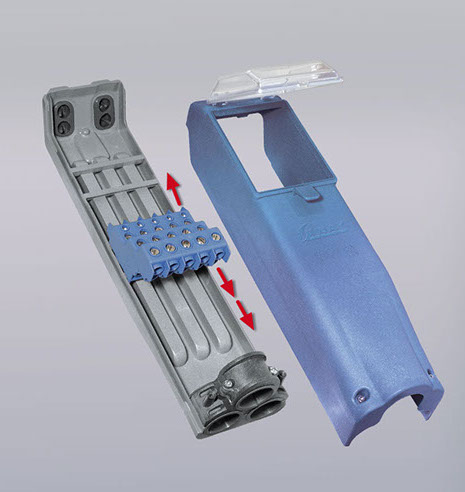

M9

3 WAYS DOUBLE ISOLATION MASTER JUNCTION BOXES



J.B. with inspectional polycarbonate cover. J.B. M9, double DIN rail to allow the five poles three ways plus branch terminal strip 5x3x35 sqmm., fuse carriers and any sort of extra accessories like MCB’s, surge arrestors etc.



The M9 comes completed of two series of rubber grommets to permit a perfect tightness of the in/out feeder cables.



After the installation of M9 inside the pole, the slot can be closed by the NO STEP aluminium cover 100x350 p/n P/100-350.



Dimensions (base x height x deep) 345x115x90 mm.



Minimum pole diameter 127 mm.



The 3 ways M9 allows the interconnection between the main feeder and a cross road using the same J.B. and the same terminal strip 5x3x35 sqmm.

Furthermore we have additioned the sliding DIN rail carrier in order to allow the relevant natural position of it after the wiring.



M9 is made of polyamidic resin 6.6 self-exstinguishing, infrangible.



Double isolation class 2 according to CEI 64-8/4 standards.



Nominal voltage 450V, max current 63A.



Protection grade IP54



CEI EN 60529, IK8 according to CEI EN 50102 standards.
