ACCESSORIES

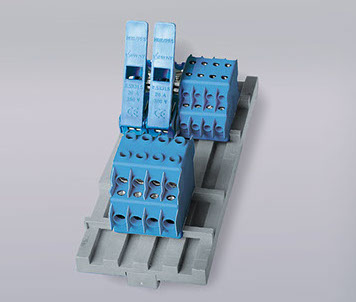

MULTIPURPOSE UNIVERSAL BASE
BASE
• Rectangular made of polyamide 6.6 self-extinguishing
• Manufactured with double built-in DIN rails 4346277/3 to allow fuse
carriers, switches and/or terminal strips up to 50 sqmm.
• Presetted for n° 4 modules 17,5 mm. on each DIN rail
• Double adjustable hooks for fixing the base on steel bars.
Distance of the bars 130/140 mm.
• Slot 100x350 mm.
• Available pole cover NO STEP 100x350
Minimum
pole diameter
114 mm
Part N°
BASE
External
dimension mm
75 x 169 x 12
Total N. of
modules
8
Code N°
BASE

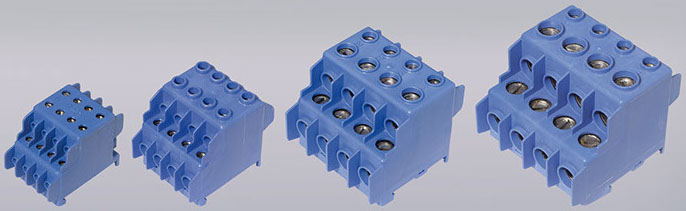

TERMINAL STRIPS
MOR/MOR/M1
2
4
6
31 x 57 h.36
30
MOR/MOR/M2
2
4
16
40 x 54 h.45
63
MOR/MOR/M3
2
4
35
57 x 60 h.50
63
MOR/MOR/M4
2
4
50
64 x 72 h.55
63
CODE/PART
N. of Weys
N. of Poles
Wire max ø sqmm
Dimensions mm
I max (A)
MOR/MOR/
• Made of polyamide resin 6.6 self-extinguishing
• Electro-alloy contacts 3 ways each 4 poles
• Inox screws AISI 304
• Nominal voltage 450V
• Class of isolation 2 according to CEI 64-8/4 standard
• Fast assembling on DIN rail
• Protection rate IP20 according to CEI EN 60529
MOR/MOR/M7
2
5
16
50 x 53 h.47
63
MOR/MOR/M6
2
5
35
72 x 62 h.55
63
MOR/MOR/M9
3
5
35
72 x 74 h.55
63
CODE/PART
N. of Weys
N. of Poles
Wire max ø sqmm
Dimensions mm
I max (A)
FUSE CARRIERS AND FUSES

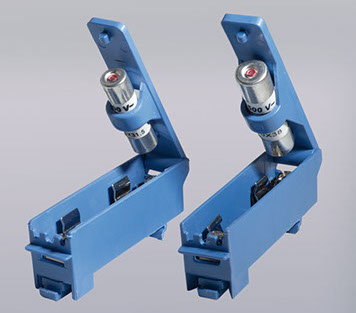

PFS - PFS2
Blade FUSE CARRIER made of polyamide 6.6; galvanic brass flexible contacts.
Wire connections by inox screws AISI 304.
DIN rail mounting type.
Protection rate IP 20 according to CEI EN 60529 Standard.
Current (A)
min - max
6 - 20
6 - 20
Dimensions
mm
63 x 16 x 23
67 x 16 x 23
For
fuses mm
8,5 x 31,5
10,3 x 38
Code N°
PFS
PFS2
Part N°
PFS
PFS2

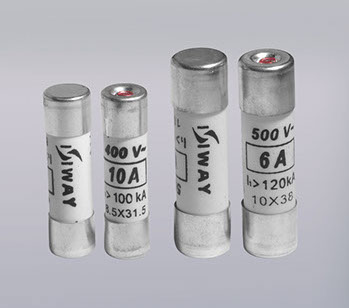

FS - FS2
Ceramic body with coloured FUSE sign. Brass contact, CE mark.
Conform to CEI 32.1.5 - IEC 269.1.3-VDE0636
Current (A)
6
10
6
10
Nominal
voltage
400V - 100kA
400V - 100kA
500V - 120kA
500V - 120kA
Fuse
dimension mm
8,5 x 31,5
8,5 x 31,5
10,3 x 38
10,3 x 38
Code N°
PFS
PFS-10
PFS2
PFS2-10
Part N°
PFS
PFS-10
PFS2
PFS2-10
SOCKET WITH BUILT-IN FUSE CARRIER
BI-PASS SOCKET
Socket with built-in fuse carrier and earth
Modular (17,5) Bi-pass unit made of polyamide 6.6 self-exstinguishing
Fuse carrier to allow fuses 6 up to 20A, 8,5 X 31,5
DIN rail fast mounting type.
